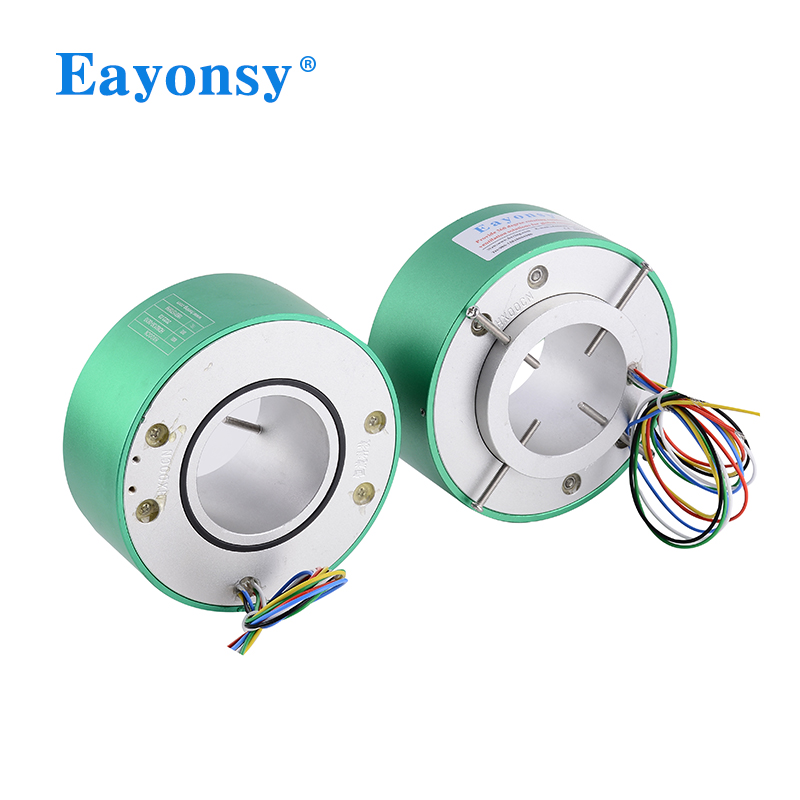

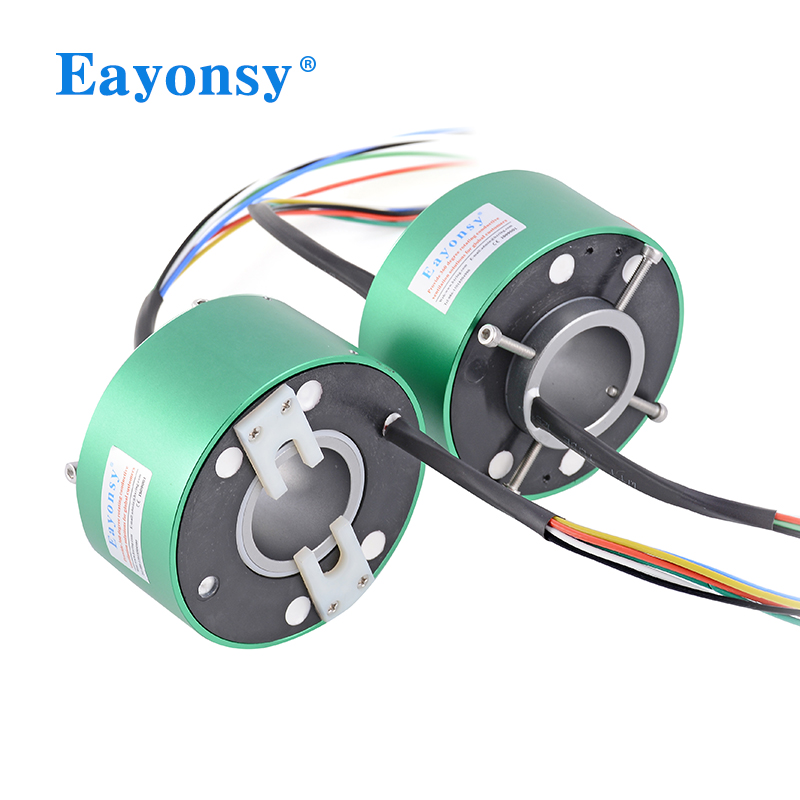

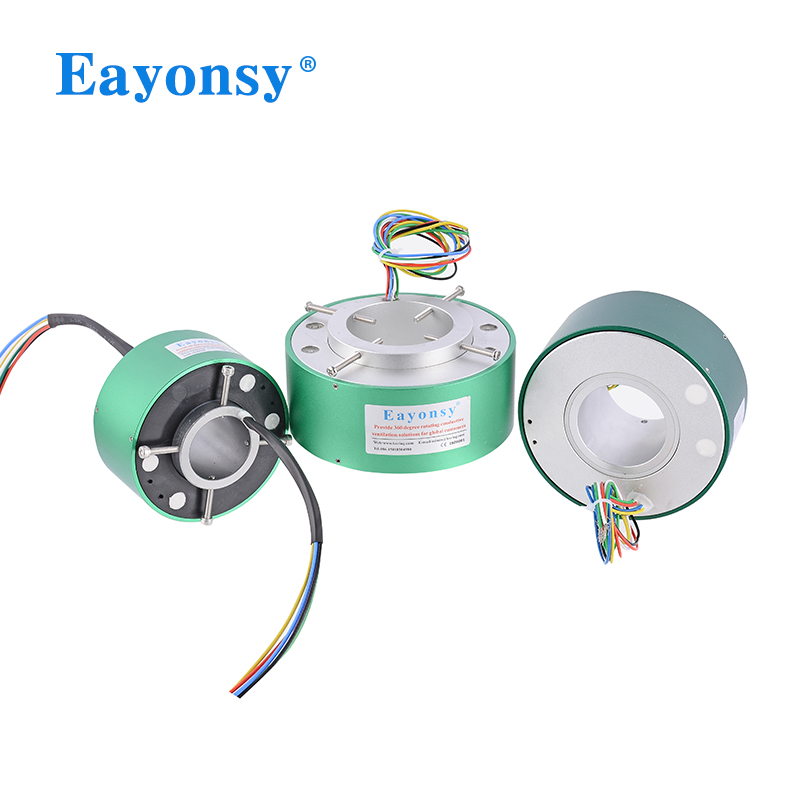

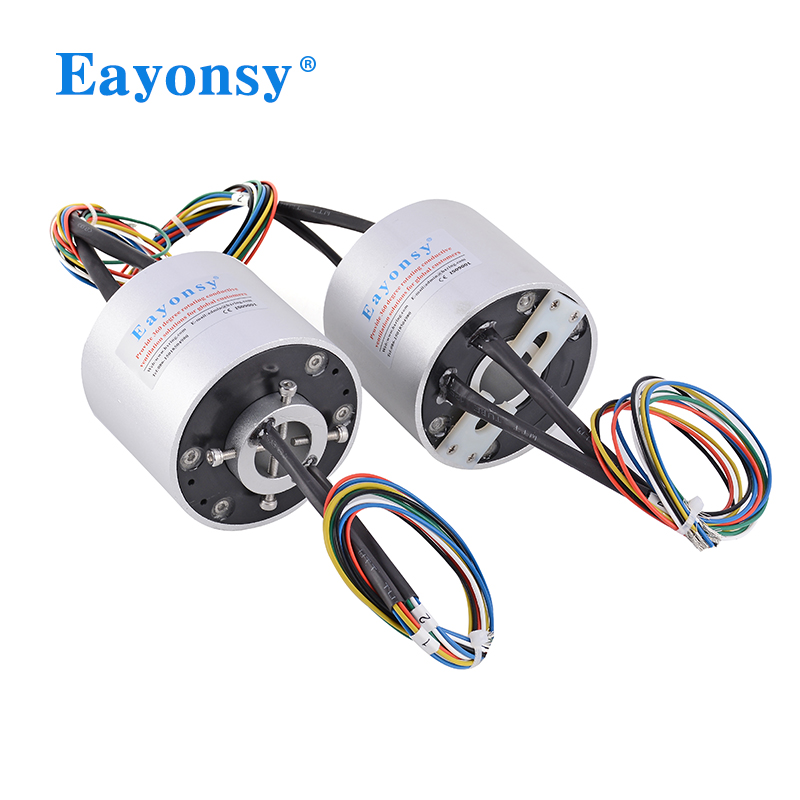

Through Bore conductive slip ring

Hole size: 3mm~300mm option

Current: 0~20a

Voltage: 0~600vac/vdc

Metal housing for better protection

INQUIRE NOW
Advanced multi-point contact brush technology ensures reliable contact with low friction;
Metal housing for better protection;
Integrated structure design, easy installation.
Hole size from 3mm to 300mm optional;
Standard current: 0~20A,Standard voltage: 0~600VAC/VDC;
Circuits No.: 0~300 circuits optional;
Customizations acceptable for circuits no. , current& voltage based on standard models;

HD IDOD F-NA-NS C

Model
Hole size (mm)
OD (mm)
Circuits no.
PDF
HD1256
12.7
56
2~48
HD1256F
12.7
56
2~48
HD2586
25.4
86
2~76
HD2586F
25.4
86
2~76
HD3899
38.1
99
2~72
HD3899F
38.1
99
2~72
HD50119
50
119
2~108
HD50119F
50
119
2~108
HD60130
60
130
2~108
HD60130F
60
130
2~108
HD70140
70
140
2~108
HD80140
80
140
2~108
HD100185
100
185
2~108
HD120215
120
215
2~108
